Brizo R82000E
SensoriPlus 2-Port Digital Thermostatic Shower Rough
The Brizo SensoriPlus 2-Port Digital Thermostatic Shower Rough gives you precise control over your shower experience. Set the water temperature and flow for each port. When paired with a compatible digital control interface, you'll have access to personalized user presets, built-in Wi-Fi, and spa options.
- Provides 2 individual shower ports with shared settings where available
- Separate mixing valves independently calibrated for each outlet
- Control temperature and water flow of each port individually when connected with a digital control interface
- Automatically adjusts during unexpected temperature changes for a consistent and comfortable shower experience
- Easy to install behind the wall in any position; requires access panel
- Features the option to restrict shower ports for compliance with water regulations in your area
- Firmware updates via user interface when connected to Wi-Fi
- Test button for rough-in pressure check
- Diagnostic LED light
- Dimensions: 10.9"W (27.7 cm) x 3.0"D (7.6 cm) x 14.7"H (37.3 cm)
- Limited 2-year warranty (consumer use)
- Digital Shower Rough
- 12VDC/60W Power Adapter with 2.5m Wire
- 35' Interface Cable
- Interface Cable Adapter
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use)
| Model | R82000E |
|---|---|
| Required Outlet | 120V |
| Maximum Power Requirement | 60W |
| Maximum Flow Rate (Per Outlet) | 9 gpm (36 L/min) at 80 PSI (550 kPa) |
| Maximum Flow Rate (All Outlets) | 18 gpm (70 L/min) at 80 PSI (550 kPa) |
| Minimum Flow Per Outlet Device or Shower Head | 1.2 gpm (4.5 L/min) |
| Maximum Operating Pressure | 100 psi (690 kPa) |
| Maximum Water Temperature | 150°F (66°C) |
| Inlet Connection | 3/4" NPT |
| Outlet Connection | 1/2" NPT |
| Width | 10.9" (27.7 cm) |
| Depth | 3.0" (7.6 cm) |
| Height | 14.7" (37.3 cm) |
| Weight | 5 lbs (2.3 kg) |

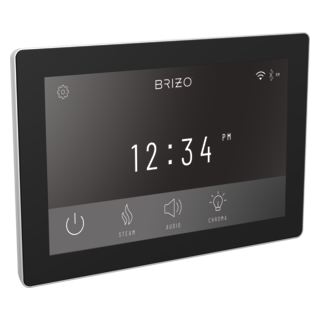

Perfect for unwinding after a stressful day, the Mystix™ Series Digital Control lets you enjoy a fully customizable steam experience. Its modern design comes in different standard and Lumicoat™ Finishes to choose from. With the featured built-in Wi-Fi and the ability to program up to twelve user presets, you'll discover ultimate relaxation.
Steam Generator Sold Separately
Customize your perfect bathing experience with the Mystix™ Transcendent Experience Set. This set delivers an innovative look with different standard and Lumicoat™ Finishes to choose from. With the featured built-in Wi-Fi and the ability to program up to twelve user presets, you'll discover ultimate relaxation. The Mystix™ Transcendent Experience Steam Set combines a Digital Control and a Contemporary Square Steam Head.
Steam Generator Sold Separately
Craft a holistic ambiance by combining all the benefits of steam with the digital interface and our full suite of spa options. This set delivers an innovative look with different standard and Lumicoat™ Finishes to choose from. The Mystix™ Transcendent Experience Steam Set combines a Digital Control and a Bilateral Steam Head.
Steam Generator Sold Separately

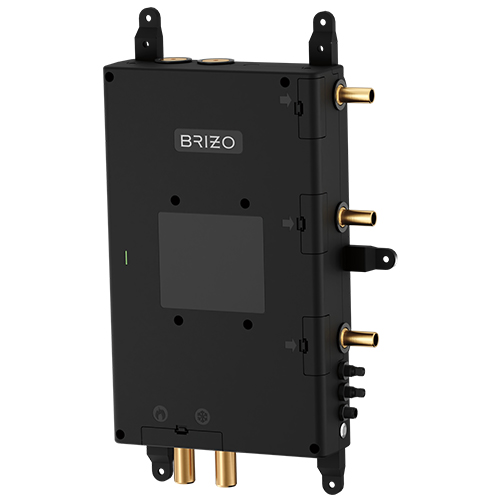

The Brizo SensoriPlus 3-Port Digital Thermostatic Shower Rough gives you precise control over your shower experience. Set the water temperature and flow for each port. When paired with a compatible digital control interface, you'll have access to personalized user presets, built-in Wi-Fi, and spa options.

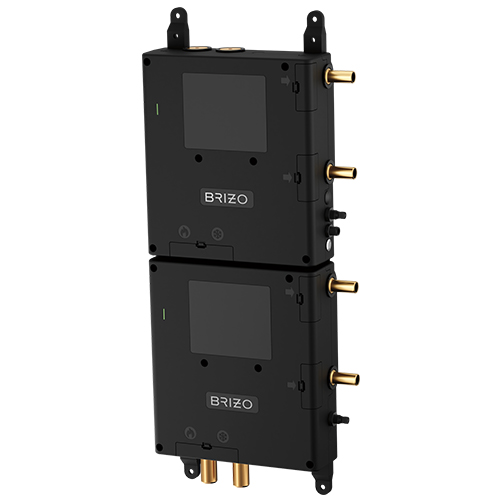

The Brizo SensoriPlus 4-Port Digital Thermostatic Shower Rough gives you precise control over your shower experience. Set the water temperature and flow for each port. When paired with a compatible digital control interface, you'll have access to personalized user presets, built-in Wi-Fi, and spa options.

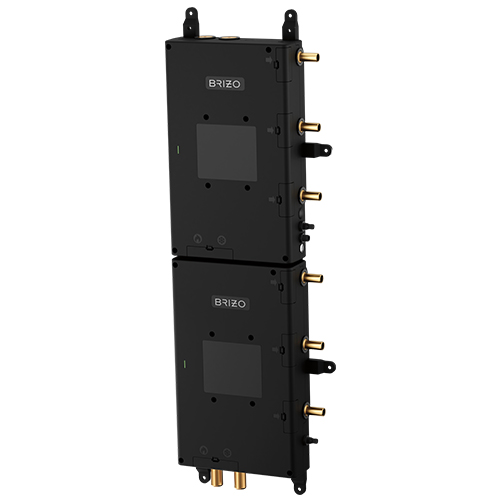

The Brizo SensoriPlus 6-Port Digital Thermostatic Shower Rough gives you precise control over your shower experience. Set the water temperature and flow for each port. When paired with a compatible digital control interface, you'll have access to personalized user presets, built-in Wi-Fi, and spa options.
