Mr.Steam MS225E
MS-E Series 7.5KW Steam Shower Generator
The Mr. Steam MS225E 7.5kW home steam shower generator is designed for residential steam baths up to 161 adjusted cubic feet (ACF).
Required control package sold separately.
- For steam baths sized from 108 to 161 adjusted cubic feet
- Stainless Steel tank
- Industrial-grade, serviceable heating element
- MiniDIN control connections
- Available Auto Drain automatic draining system
- Durable electronic components
- Electronic water-level control system
- Low-voltage safety control circuits
- Solid-state circuitry
- Diagnostic LED Displays
- Full port drain valve
- ASME safety valve
- UL/CUL/NOM/CE Listed
- 7.5KW Steam bath generator, 14-1/2"L x 6-3/4"W x 14-3/4"H
- Installation and operation manual
- Limited warranty
| Model | MS 225E |
|---|---|
| Minimum Adjusted Cubic Feet | 108 |
| Maximum Adjusted Cubic Feet | 161 |
| Shipping Weight | 30 lbs |
| Kilowatt Rating | 7.5 KW |
| Electrical Specifications | Electrical Chart |
| Water Supply Connection | 3/8" NPT |
| Generator Steam Line Connection | 1/2" NPT |
| Steam Head Connection | 1/2" NPT |
| Drain Connection | 1/2" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve | 15 PSIG |
| Control "Rough In" Cut Out | 1" |
| Generator Control Connection | 8-Pin Mini-DIN Connector |
| Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
| Width | 14-1/2" |
| Depth | 6-3/4" |
| Height | 14-3/4" |
The digital iTempo 60-minute steam shower control from Mr.Steam provides programmable temperature control. The iTempo features a soft touch key pad and easy-to-read digital readout display and is compatible with the SteamLinx mobile control module. Comes with matching designer finish aroma steam head.

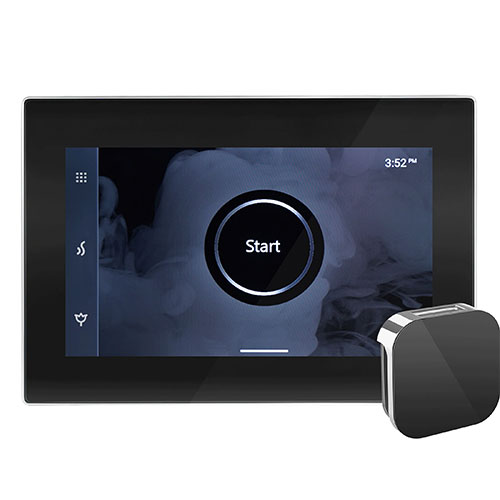

Take total control over every detail of your steam shower experience. The sophisticated and intuitive iSteamX® from Mr.Steam is the most technologically advanced control available. Personalize your temperature, settings, and steam therapies at the touch of a finger. Housed in a sleek, slimline package, it mounts nearly flush on the wall of your shower.

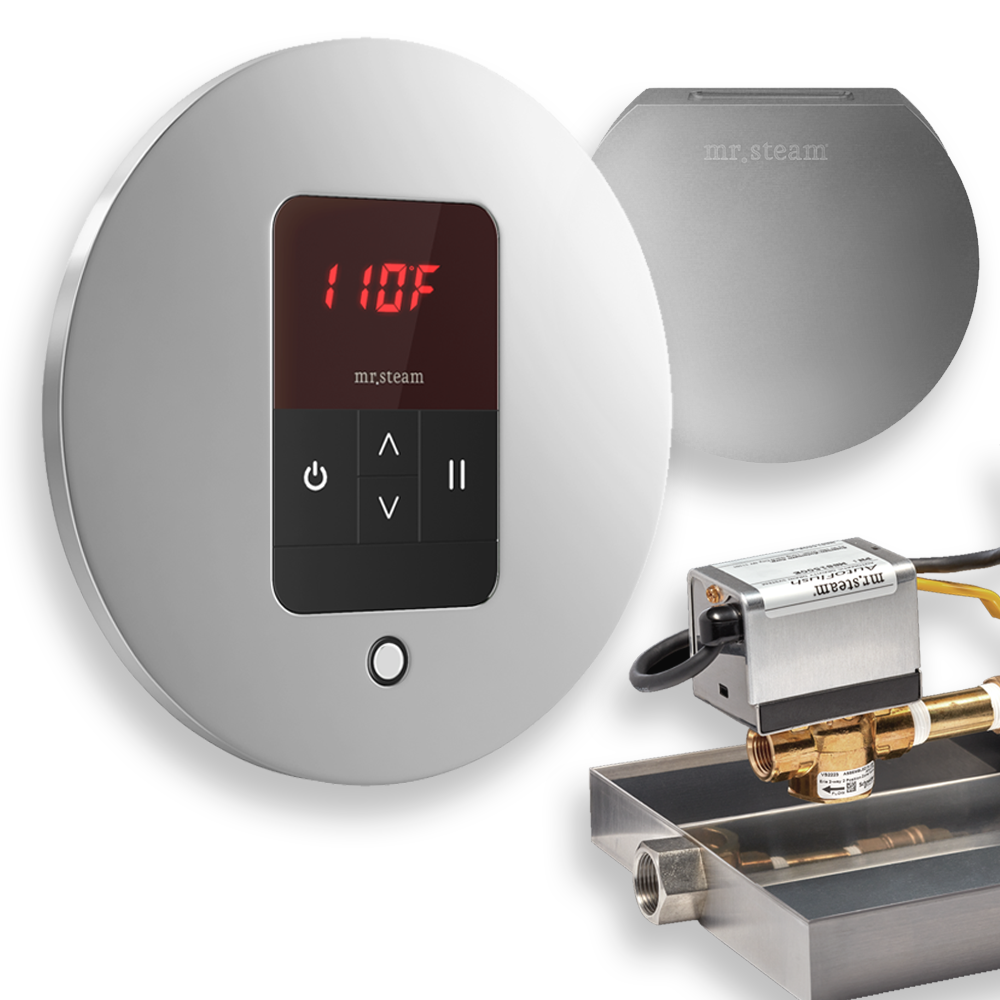

The Mr.Steam Basic Butler Steam Shower Package (BBUTLER) is compatible with the MS and Super Series generators and includes an iTempo steam shower control with matching finish steam head, autoflush automatic drain system, and condensation drain pan.
The Basic Butler Linear (BBUTLERL) Steam Shower Operating Package, for MS and SUPER Series steam shower generators, contains an MS iTempo operating control with matching-finish linear steam head, automatic drain valve, and drain pan for an enhanced the steam bathing experience.
The Butler Steam Shower Operating Package (BTLRL1) for MS and SUPER Series generators contains an MS iTempo operating control with matching-finish linear steam head, remote-start app, automatic drain valve, and drain pan for an enhanced the steam bathing experience.
The Mr. Steam MS90E 5kW home steam shower generator is engineered for residential steam rooms up to 71 adjusted cubic feet (ACF).
Required control package sold separately.
The Mr. Steam MS150E steam shower generator is designed for home steam rooms up to 107 adjusted cubic feet (ACF).
Required control package sold separately.
The Mr. Steam MS Super3E 15kW home steam bath generator is engineered for residentail steam showers up to 482 adjusted cubic feet (ACF).
Required control package sold separately.
Improving on the popular MS Super 6E, the MX6E 30kW home steam shower generator is engineered for residential steam rooms up to 964 adjusted cubic feet (ACF).
Required control package sold separately.

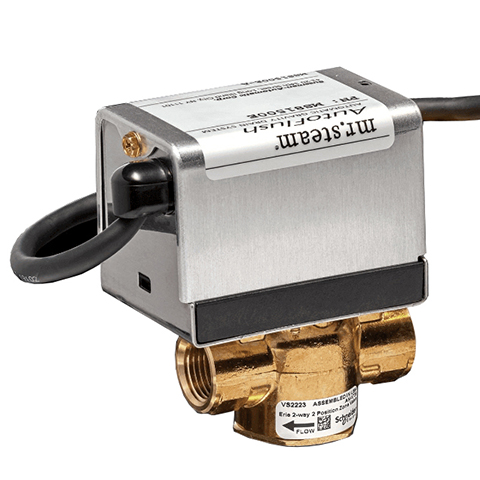

Protect your steam generator with the Mr.Steam AutoFlush System MS81500E, an automatic self-cleaning system that promotes a long and healthy life for MS and MSSUPER Steam Shower Generators.
The Mr.Steam Condensation Pan 103867 protects your steam shower floor from potential water escape. It traps and redirects the water to a predetermined area for MS and MSSUPER Steam Shower Generators.

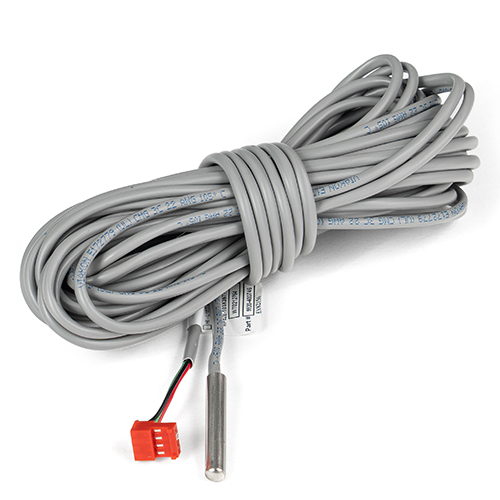

The Mr.Steam Temperature Room Sensor MSTS will be required if you desire to have your control placed outside of the steam room. Works with iSteamX, AirTempo, iTempo, and iTempoPlus Controls.
