Kohler K-39012
Anthem One-Port Recessed Mechanical Thermostatic Valve
The Kohler Anthem One-Port Recessed Mechanical Thermostatic Valve allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. With a single port, this valve is suited for applications where only 1 shower outlet is required.
- High-flow thermostatic mixing valve
- Mechanically controlled thermostatic mixing valve maintains the outlet temperature
- Service stops with integral filters
- Antiscald protection
- Integrated adjustable high-temperature limit stop controls the maximum water temperature
- Adjustable comfort setting (preset at approximately 104°F)
- Maximum flow rate of 7 gpm (26.5 lpm) at 45 psi (3.1 bar)
- 3/4" NPT female inlet and 1/2" NPT female outlet connections
- Dimensions: 8.9"W (23 cm) x 4.9"D (12 cm) x 6.1"H (16 cm)
- Limited lifetime warranty
- Thermostatic Valve
- Lifetime Limited Warranty
| Model | K-39012 |
|---|---|
| Construction Material | Brass |
| Maximum Flow Rate | 7 gpm |
| Inlet Connection | 3/4" NPT female |
| Outlet Connection | 1/2" NPT female |
| Width | 8.9" (23 cm) |
| Depth | 4.9" (12 cm) |
| Height | 6.1" (16 cm) |
| Weight | 5.8 lbs (3 kg) |

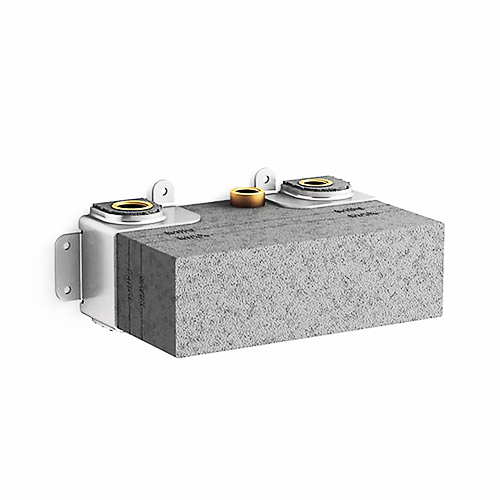

The Kohler Anthem Two-Port Recessed Mechanical Thermostatic Valve allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. With 2 independently controllable ports, this valve is suited for applications where 1 or 2 shower outlets are required.

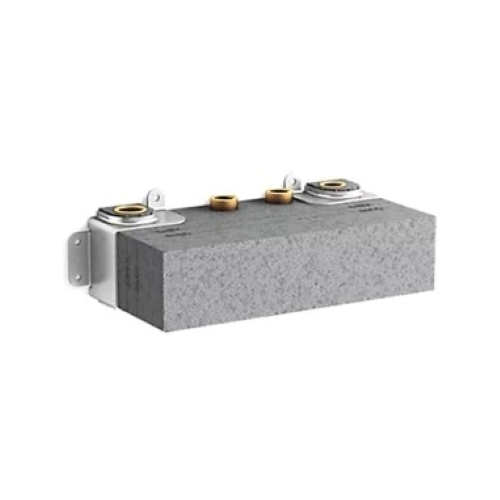

The Kohler Anthem Three-Port Recessed Mechanical Thermostatic Valve allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. With 3 independently controllable ports, this valve is suited for applications where up to 3 shower outlets are required.

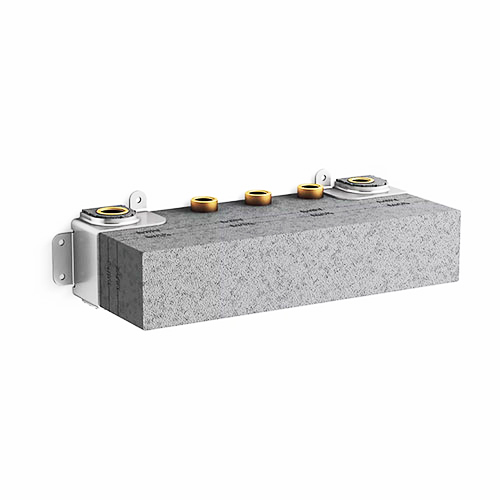

The Kohler Anthem Four-Port Recessed Mechanical Thermostatic Valve allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. With 4 independently controllable ports, this valve is suited for applications where up to 4 outlets are required.
